ACSR (Aluminium Conductor Steel Re-inforced)

Application

ACSR Conductor are used as bare overhead transmission cable & also as primary and secondary distribution cable. ACSR Conductor offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Technical Data

Aluminium Conductor Steel-reinforced (ACSR) is a specific type of high-capacity, high-strength stranded conductor typically used in overhead power lines.
The outer strands are of Aluminium which is mainly because of its high conductivity, low weight and low cost.
The center strand(s) is/are of steel, which is used for the strength required to support the weight without stretching the aluminium due to its flexibility.
MUL provides ACSR conductors in several specific sizes, codes and types -all as per Indian and International Standards.

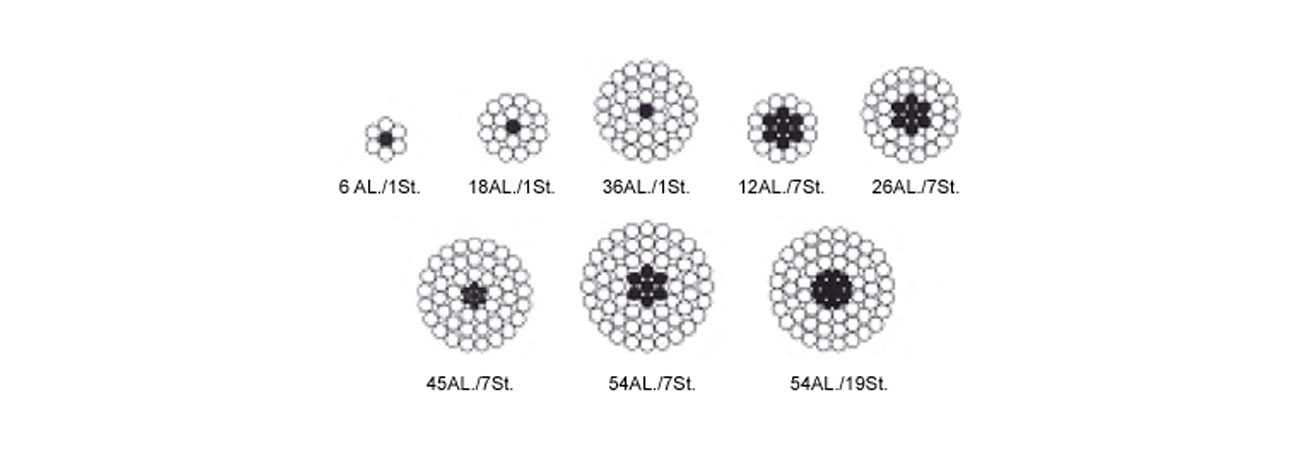

Cable Design Parameters

ACSR Code Word	Cond. Area mm ²	Stranding & Wire Dia in mm		Calculated sectional Area Sq.mm		Approx overall Dia mm	Weight kg/km			Calc. Electrical Resistance at 20^oC Ohms/km	Approx Calc. Breaking Load(KN)
ACSR Code Word	Cond. Area mm ²	Alum.	Steel	Alum.	ACSR	ACSR	ACSR	Alum.	Steel	Cond.	Cond.
MOLE	10	6/1.50	1/1.50	10.60	12.37	4.50	43	29	14	2.780	3.97
SPECIAL	18	6/1.95	1/1.95	18.10	21.12	5.88	73	50	23	1.618	6.74
SQUIRREL	20	6/2.11	1/2.11	20.98	24.48	6.33	85	58	27	1.394	70.61
WEASEL	30	6/2.59	1/2.59	31.61	36.88	7.77	128	87	41	0.929	11.12
RABBIT	50	6/3.35	1/3.35	52.88	61.70	10.05	214	145	69	0.552	18.25
RACCOON	80	6/4.09	1/4.09	78.83	91.97	12.27	319	216	103	0.371	26.91
DOG	100	6/4.72	7/1.57	105.00	118.50	14.15	394	288	106	0.279	32.41
WOLF	150	30/2.59	7/2.59	158.10	194.90	18.13	726	437	289	0.187	67.34
PANTHER	200	30/3.0	7/3.00	212.10	261.50	21.00	974	586	388	0.139	89.67
KUNDAH	400	42/3.50	7/1.96	404.10	425.20	26.88	1281	1116	165	0.073	88.79
ZEBRA	420	54/3.18	7/3.18	428.90	484.50	28.62	1621	1186	435	0.069	130.32
MOOSE	520	54/3.53	7/3.53	528.50	597.00	31.77	2004	1461	537	0.056	161.20
MORKULLA	560	42/4.13	7/2.30	562.70	591.70	31.68	1787	1553	228	0.052	120.16
